LNX-6513DS-A1M

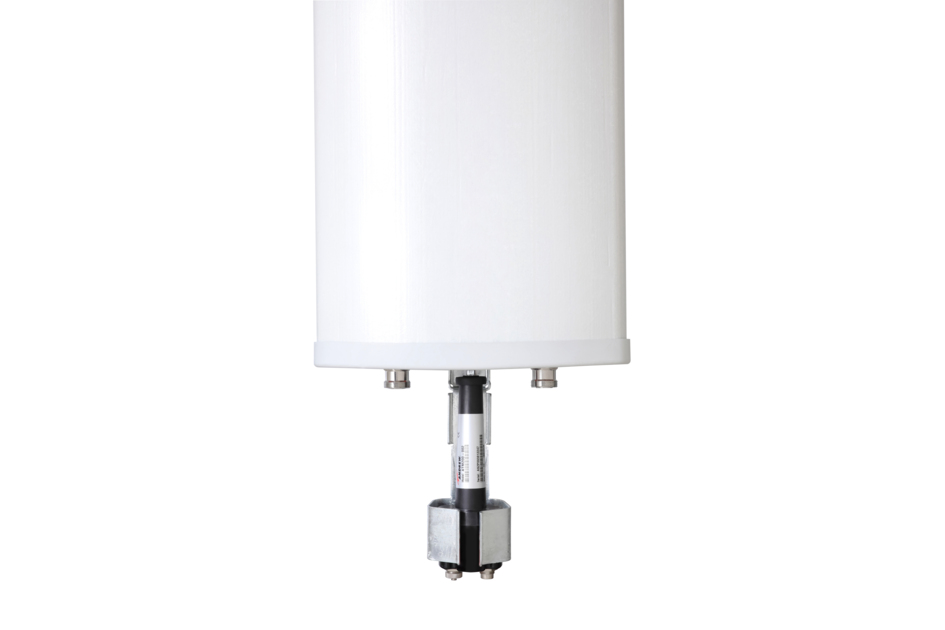

2-port sector antenna, 2x 698–896 MHz, 65° HPBW, factory attached actuator

Finish making your selections or clear them to view relevant specifications.

Features and benefits

Extended tilt range offers better coverage
Great solution to maximize network coverage and capacity
Excellent gain, VSWR, front-to-back ratio, and PIM specifications for robust network performance
Fully compatible with ANDREW remote electrical tilt system for greater OpEx savings
The RF connectors are designed for IP67 rating and the radome for IP56 rating

Specifications

General specifications

Antenna Type	Sector
Band	Single band
Color	Light Gray (RAL 7035)
Grounding Type	RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note	Outdoor usage \| Wind loading figures are validated by wind tunnel measurements described in white paper WP-112534-EN
Radome Material	Fiberglass, UV resistant
Radiator Material	Aluminum
RF Connector Interface	7-16 DIN Female
RF Connector Location	Bottom
RF Connector Quantity, high band	0
RF Connector Quantity, mid band	0
RF Connector Quantity, low band	2
RF Connector Quantity, total	2

Width	301 mm \| 11.85 in
Depth	181 mm \| 7.126 in
Length	1390 mm \| 54.724 in
Length, with installed actuator	1553 mm \| 61.142 in
Net Weight, without mounting kit	14.8 kg \| 32.628 lb

Frequency Band, MHz	698–806	806–896
Gain, dBi	14.6	15.1
Beamwidth, Horizontal, degrees	65	65
Beamwidth, Vertical, degrees	16	14.5
Beam Tilt, degrees	0–10	0–10
USLS, typical, dB	20	20
Front-to-Back Ratio at 180°, dB	30	30
CPR at Boresight, dB	12	12
CPR at Sector, dB	10	10
Isolation, Cross Polarization, dB	30	30
VSWR \| Return loss, dB	1.4 \| 15.6	1.4 \| 15.6
PIM, 3rd Order, 2 x 20 W, dBc	-150	-150
Input Power per Port, maximum, watts	400	400

Wind Loading @ Velocity, frontal	202.0 N @ 150 km/h (45.4 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral	166.0 N @ 150 km/h (37.3 lbf @ 150 km/h)
Wind Loading @ Velocity, maximum	390.0 N @ 150 km/h (87.7 lbf @ 150 km/h)
Wind Loading @ Velocity, rear	205.0 N @ 150 km/h (46.1 lbf @ 150 km/h)
Wind Speed, maximum	241 km/h (150 mph)

Agency	Classification
CHINA-ROHS	Below maximum concentration value
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
ROHS	Compliant
UK-ROHS	Compliant

Antenna Type	Sector
Band	Single band
Color	Light Gray (RAL 7035)
Grounding Type	RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note	Outdoor usage \| Wind loading figures are validated by wind tunnel measurements described in white paper WP-112534-EN
Radome Material	Fiberglass, UV resistant
Radiator Material	Aluminum
RF Connector Interface	7-16 DIN Female
RF Connector Location	Bottom
RF Connector Quantity, high band	0
RF Connector Quantity, mid band	0
RF Connector Quantity, low band	2
RF Connector Quantity, total	2

Width	301 mm \| 11.85 in
Depth	181 mm \| 7.126 in
Length	1390 mm \| 54.724 in
Length, with installed actuator	1553 mm \| 61.142 in
Net Weight, without mounting kit	14.8 kg \| 32.628 lb

Frequency Band, MHz	698–806	806–896
Gain, dBi	14.6	15.1
Beamwidth, Horizontal, degrees	65	65
Beamwidth, Vertical, degrees	16	14.5
Beam Tilt, degrees	0–10	0–10
USLS, typical, dB	20	20
Front-to-Back Ratio at 180°, dB	30	30
CPR at Boresight, dB	12	12
CPR at Sector, dB	10	10
Isolation, Cross Polarization, dB	30	30
VSWR \| Return loss, dB	1.4 \| 15.6	1.4 \| 15.6
PIM, 3rd Order, 2 x 20 W, dBc	-150	-150
Input Power per Port, maximum, watts	400	400

Wind Loading @ Velocity, frontal	202.0 N @ 150 km/h (45.4 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral	166.0 N @ 150 km/h (37.3 lbf @ 150 km/h)
Wind Loading @ Velocity, maximum	390.0 N @ 150 km/h (87.7 lbf @ 150 km/h)
Wind Loading @ Velocity, rear	205.0 N @ 150 km/h (46.1 lbf @ 150 km/h)
Wind Speed, maximum	241 km/h (150 mph)

Agency	Classification
CHINA-ROHS	Below maximum concentration value
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
ROHS	Compliant
UK-ROHS	Compliant
