LDXX-9013DS-VTM

4-port sector antenna, 4x 790–960 MHz, 90° HPBW, RET compatible

Finish making your selections or clear them to view relevant specifications.

Features and benefits

Two DualPol® antennas under one radome
Each DualPol® array can be independently adjusted for greater flexibility
Engineered to provide wideband capability to support “Digital Dividend” band applications, future ready

Specifications

General specifications

Antenna Type	Sector
Band	Single band
Color	Light Gray (RAL 7035)
Grounding Type	RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note	Outdoor usage
Radome Material	Fiberglass, UV resistant
Radiator Material	Aluminum
RF Connector Interface	7-16 DIN Female

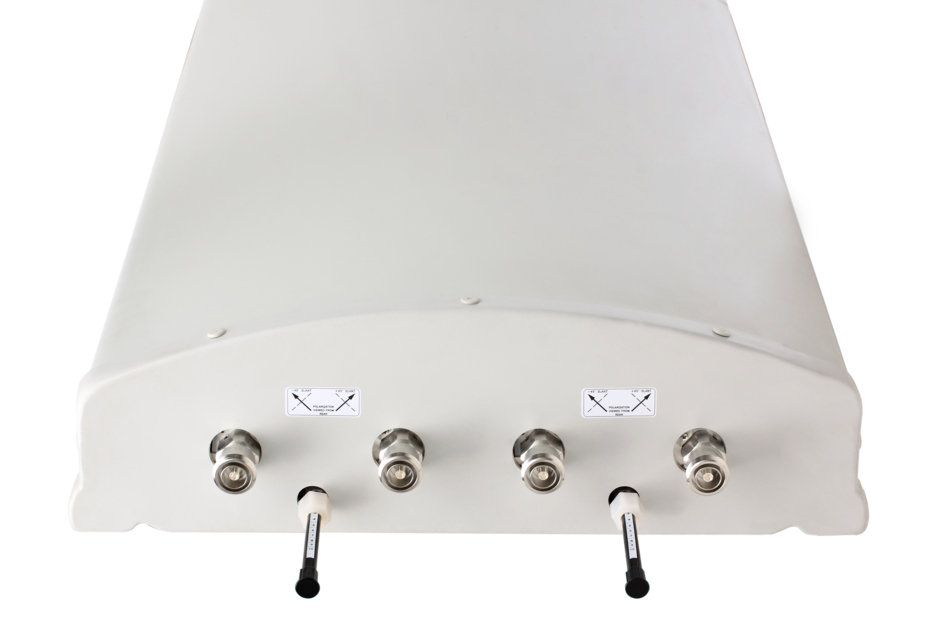

RF Connector Location	Bottom
RF Connector Quantity, high band	0
RF Connector Quantity, mid band	0
RF Connector Quantity, low band	4
RF Connector Quantity, total	4

Width	549 mm \| 21.614 in
Depth	165 mm \| 6.496 in
Length	1830 mm \| 72.047 in
Net Weight, without mounting kit	30 kg \| 66.139 lb

Frequency Band, MHz	790–862	824–894	870–960
Gain, dBi	14.4	14.8	15.3
Beamwidth, Horizontal, degrees	89	86	83
Beamwidth, Vertical, degrees	11.3	11.1	10.5
Beam Tilt, degrees	0–10	0–10	0–10
USLS (First Lobe), dB	14	14	15
Front-to-Back Ratio at 180°, dB	26	27	27
CPR at Boresight, dB	21	20	21
CPR at Sector, dB	10	11	11
Isolation, Cross Polarization, dB	30	30	30
VSWR \| Return loss, dB	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0
PIM, 3rd Order, 2 x 20 W, dBc	-150	-150	-150
Input Power per Port, maximum, watts	300	300	300

Wind Loading @ Velocity, frontal	1,188.0 N @ 150 km/h (267.1 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral	189.0 N @ 150 km/h (42.5 lbf @ 150 km/h)
Wind Loading @ Velocity, rear	1,377.0 N @ 150 km/h (309.6 lbf @ 150 km/h)
Wind Speed, maximum	241 km/h (150 mph)

Agency	Classification
CE	Compliant with the relevant CE product directives
CHINA-ROHS	Below maximum concentration value
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
ROHS	Compliant
UK-ROHS	Compliant
REACH-SVHC	Compliant as per SVHC revision on www.andrew.com/ProductCompliance
