KKV4S4SS-360A-BF

24-port small cell antenna, 4x 617-960, 8x 1695-2690, 8x 3400-4000 MHz beamformer, 4x 3100-4200 MHz, 360° Horizontal Beamwidth, fixed tilt.

Finish making your selections or clear them to view relevant specifications.
Download specifications
Find a partner
Top Line Image
Features and benefits
  • Array configuration provides capability for 4T4R (4X MIMO) on Low Band, dual 4T4R (4X MIMO) on Mid Band and 4T4R (4X MIMO) on High Band
  • 8T8R omni beamforming array with calibration port for 3.5 GHz (Bands 48, 77, 78)

General specifications

Antenna Type Small Cell
Band Multiband
Calibration Connector Interface 4.3-10 Female
Calibration Connector Quantity 1
Color Light Gray (RAL 7035)
Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note Outdoor usage
Radome Material ASA, UV stabilized
Reflector Material Aluminum
RF Connector Interface 4.3-10 Female
RF Connector Location Bottom
RF Connector Quantity, high band 12
RF Connector Quantity, mid band 8
RF Connector Quantity, low band 4
RF Connector Quantity, total 24

Dimensions

Length 1574 mm | 61.969 in
Net Weight, without mounting kit 35.5 kg | 78.264 lb
Outer Diameter 370 mm | 14.567 in

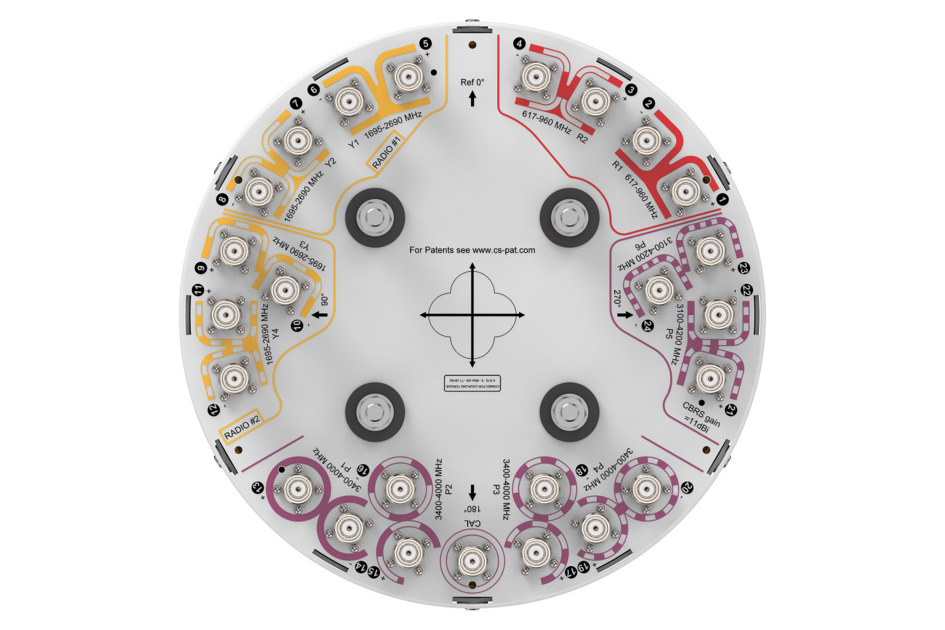

Port configuration

Click on image to enlarge.

Electrical specifications

Impedance 50 ohm
Operating Frequency Band 617 – 960 MHz | 1695 – 2690 MHz | 3100 – 4200 MHz | 3400 – 4000 MHz
Polarization ±45°
Total Input Power, maximum 1,440 W

Electrical specifications

R1,R2 R1,R2 R1,R2 R1,R2 Y1-Y4 Y1-Y4 Y1-Y4 Y1-Y4 Y1-Y4 P1-P4 P1-P4 P1-P4 P5-P6 P5-P6 P5-P6
Frequency Band, MHz 617–694 694–806 806–896 896–960 1695–1880 1850–1990 1920–2200 2300–2500 2496–2690 3400–3550 3550–3700 3700–4000 3100–3550 3550–3700 3700–4200
RF Port 1-4 1-4 1-4 1-4 5-12 5-12 5-12 5-12 5-12 13-20 13-20 13-20 21-24 21-24 21-24
Gain, dBi 7.4 7.0 6.7 6.5 11.6 12.0 12.8 13.3 12.0 10.2 11.2 11.6 10.0 10.2 10.4
Beamwidth, Horizontal, degrees 360 360 360 360 360 360 360 360 360 360 360 360 360 360 360
Beamwidth, Vertical, degrees 26.3 22.3 19.2 19.1 7.8 7.2 6.7 5.7 5.2 7.7 7.3 6.8 12.8 11.8 10.8
Beam Tilt, degrees 10 10 10 10 0 0 0 0 0 0 0 0 0 0 0
Coupling level, Amp, Antenna port to Cal port, dB 26 26 26
Coupling level, max Amp Δ, Antenna port to Cal port, dB ±2 ±2 ±2
Coupler, max Amp Δ, Antenna port to Cal port, dB 1.0 1.0 1.0
Coupler, max Phase Δ, Antenna port to Cal port, degrees 10 10 10
Isolation, Cross Polarization, dB 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25
Isolation, Inter-band, dB 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25
Isolation, Co-polarization, dB 15 15 15
VSWR | Return loss, dB 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0
PIM, 3rd Order, 2 x 20 W, dBc -153 -153 -153 -153 -153 -153 -153 -153 -153 -145 -145 -145 -145 -145 -145
Input Power per Port at 50°C, maximum, watts 150 150 150 150 150 150 150 150 150 100 100 100 100 100 100

Electrical specifications, broadcast 360

Frequency Band, MHz 617–694 694–806 806–896 896–960 1695–1880 1850–1990 1920–2200 2300–2500 2496–2690 3400–3550 3550–3700 3700–4000 3100–3550 3550–3700 3700–4200
Gain, dBi 9.6 10.6 11.2
Beamwidth, Horizontal at 3 dB, degrees 360 360 360
Beamwidth, Vertical, degrees 7.7 7.2 6.8

Electrical specifications, service beam

Frequency Band, MHz 617–694 694–806 806–896 896–960 1695–1880 1850–1990 1920–2200 2300–2500 2496–2690 3400–3550 3550–3700 3700–4000 3100–3550 3550–3700 3700–4200
Steered 0° Gain, dBi 14.6 15.8 16.0
Steered 0° Beamwidth, Horizontal, degrees 64 52 48

Mechanical specifications

BASTA Version, mechanical BASTA v12

Packaging and weights

Width, packed 478 mm | 18.819 in
Depth, packed 464 mm | 18.268 in
Length, packed 1935 mm | 76.181 in
Weight, gross 43.5 kg | 95.901 lb

Regulatory compliance/certifications

Agency Classification
CHINA-ROHS Below maximum concentration value
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant
UK-ROHS Compliant
REACH-SVHC Compliant as per SVHC revision on www.andrew.com/ProductCompliance

General specifications

Antenna Type Small Cell
Band Multiband
Calibration Connector Interface 4.3-10 Female
Calibration Connector Quantity 1
Color Light Gray (RAL 7035)
Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note Outdoor usage
Radome Material ASA, UV stabilized
Reflector Material Aluminum
RF Connector Interface 4.3-10 Female
RF Connector Location Bottom
RF Connector Quantity, high band 12
RF Connector Quantity, mid band 8
RF Connector Quantity, low band 4
RF Connector Quantity, total 24

Dimensions

Length 1574 mm | 61.969 in
Net Weight, without mounting kit 35.5 kg | 78.264 lb
Outer Diameter 370 mm | 14.567 in

Electrical specifications

Impedance 50 ohm
Operating Frequency Band 617 – 960 MHz | 1695 – 2690 MHz | 3100 – 4200 MHz | 3400 – 4000 MHz
Polarization ±45°
Total Input Power, maximum 1,440 W

Electrical specifications

R1,R2 R1,R2 R1,R2 R1,R2 Y1-Y4 Y1-Y4 Y1-Y4 Y1-Y4 Y1-Y4 P1-P4 P1-P4 P1-P4 P5-P6 P5-P6 P5-P6
Frequency Band, MHz 617–694 694–806 806–896 896–960 1695–1880 1850–1990 1920–2200 2300–2500 2496–2690 3400–3550 3550–3700 3700–4000 3100–3550 3550–3700 3700–4200
RF Port 1-4 1-4 1-4 1-4 5-12 5-12 5-12 5-12 5-12 13-20 13-20 13-20 21-24 21-24 21-24
Gain, dBi 7.4 7.0 6.7 6.5 11.6 12.0 12.8 13.3 12.0 10.2 11.2 11.6 10.0 10.2 10.4
Beamwidth, Horizontal, degrees 360 360 360 360 360 360 360 360 360 360 360 360 360 360 360
Beamwidth, Vertical, degrees 26.3 22.3 19.2 19.1 7.8 7.2 6.7 5.7 5.2 7.7 7.3 6.8 12.8 11.8 10.8
Beam Tilt, degrees 10 10 10 10 0 0 0 0 0 0 0 0 0 0 0
Coupling level, Amp, Antenna port to Cal port, dB 26 26 26
Coupling level, max Amp Δ, Antenna port to Cal port, dB ±2 ±2 ±2
Coupler, max Amp Δ, Antenna port to Cal port, dB 1.0 1.0 1.0
Coupler, max Phase Δ, Antenna port to Cal port, degrees 10 10 10
Isolation, Cross Polarization, dB 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25
Isolation, Inter-band, dB 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25
Isolation, Co-polarization, dB 15 15 15
VSWR | Return loss, dB 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0
PIM, 3rd Order, 2 x 20 W, dBc -153 -153 -153 -153 -153 -153 -153 -153 -153 -145 -145 -145 -145 -145 -145
Input Power per Port at 50°C, maximum, watts 150 150 150 150 150 150 150 150 150 100 100 100 100 100 100

Electrical specifications, broadcast 360

Frequency Band, MHz 617–694 694–806 806–896 896–960 1695–1880 1850–1990 1920–2200 2300–2500 2496–2690 3400–3550 3550–3700 3700–4000 3100–3550 3550–3700 3700–4200
Gain, dBi 9.6 10.6 11.2
Beamwidth, Horizontal at 3 dB, degrees 360 360 360
Beamwidth, Vertical, degrees 7.7 7.2 6.8

Electrical specifications, service beam

Frequency Band, MHz 617–694 694–806 806–896 896–960 1695–1880 1850–1990 1920–2200 2300–2500 2496–2690 3400–3550 3550–3700 3700–4000 3100–3550 3550–3700 3700–4200
Steered 0° Gain, dBi 14.6 15.8 16.0
Steered 0° Beamwidth, Horizontal, degrees 64 52 48

Mechanical specifications

BASTA Version, mechanical BASTA v12

Packaging and weights

Width, packed 478 mm | 18.819 in
Depth, packed 464 mm | 18.268 in
Length, packed 1935 mm | 76.181 in
Weight, gross 43.5 kg | 95.901 lb
Click on image to enlarge.

Regulatory compliance/certifications

Agency Classification
CHINA-ROHS Below maximum concentration value
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant
UK-ROHS Compliant
REACH-SVHC Compliant as per SVHC revision on www.andrew.com/ProductCompliance
