JCVHHTT-65B-R6

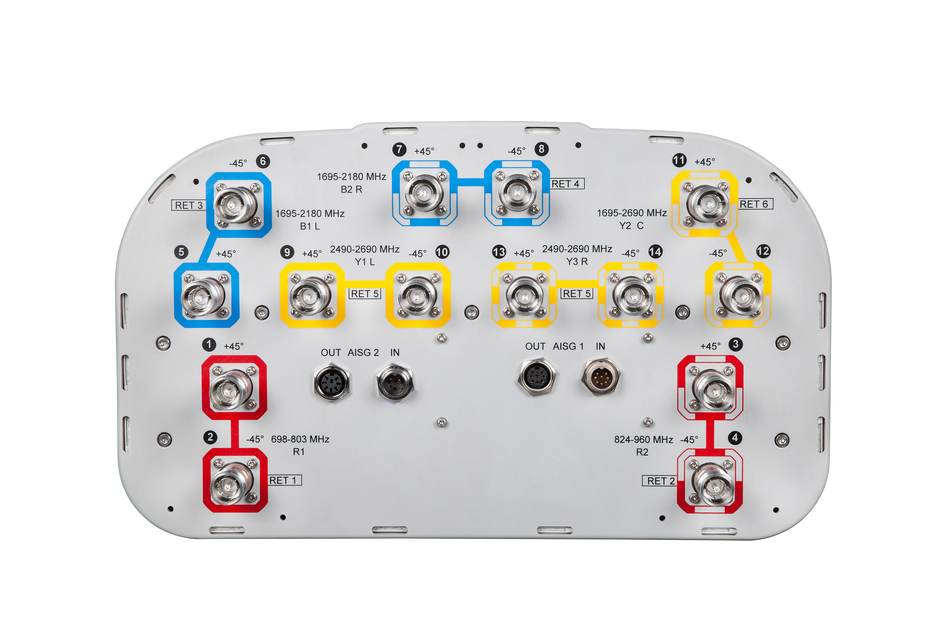

14-port sector antenna, 2x 698-803 (R1), 2x 824-960 (R2), 2x 1695-2690 (Y2), 4x 1695-2180 (B1-B2), 4x 2490-2690 (Y1 & Y3) MHz, 65° HPBW, 6x RET. Y1 & Y3 share a common RET

Finish making your selections or clear them to view relevant specifications.

Features and benefits

All Internal RET actuators are connected in “Cascaded SRET” configuration
Supports re-configurable antenna sharing capability enabling control of the internal RET system using up to two separate RET compatible OEM radios (Supports_r)
Retractable tilt indicator rods

Specifications

General specifications

Antenna Type	Sector
Band	Multiband
Grounding Type	RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note	Outdoor usage \| Wind loading figures are validated by wind tunnel measurements described in white paper WP-112534-EN
Radome Material	Fiberglass, UV resistant
Reflector Material	Aluminum
RF Connector Interface	4.3-10 Female
RF Connector Location	Bottom
RF Connector Quantity, high band	10
RF Connector Quantity, mid band	0
RF Connector Quantity, low band	4
RF Connector Quantity, total	14

Remote electrical tilt (ret) information

RET Hardware	CommRET v2
RET Interface	8-pin DIN Female \| 8-pin DIN Male
RET Interface, quantity	2 female \| 2 male
Input Voltage	10–30 Vdc
Internal RET	High band (4) \| Low band (2)
Power Consumption, idle state, maximum	1 W
Power Consumption, normal conditions, maximum	8 W
Protocol	3GPP/AISG 2.0 (Single RET)

Dimensions

Width	395 mm \| 15.551 in
Depth	228 mm \| 8.976 in
Length	1980 mm \| 77.953 in
Net Weight, without mounting kit	35.6 kg \| 78.484 lb

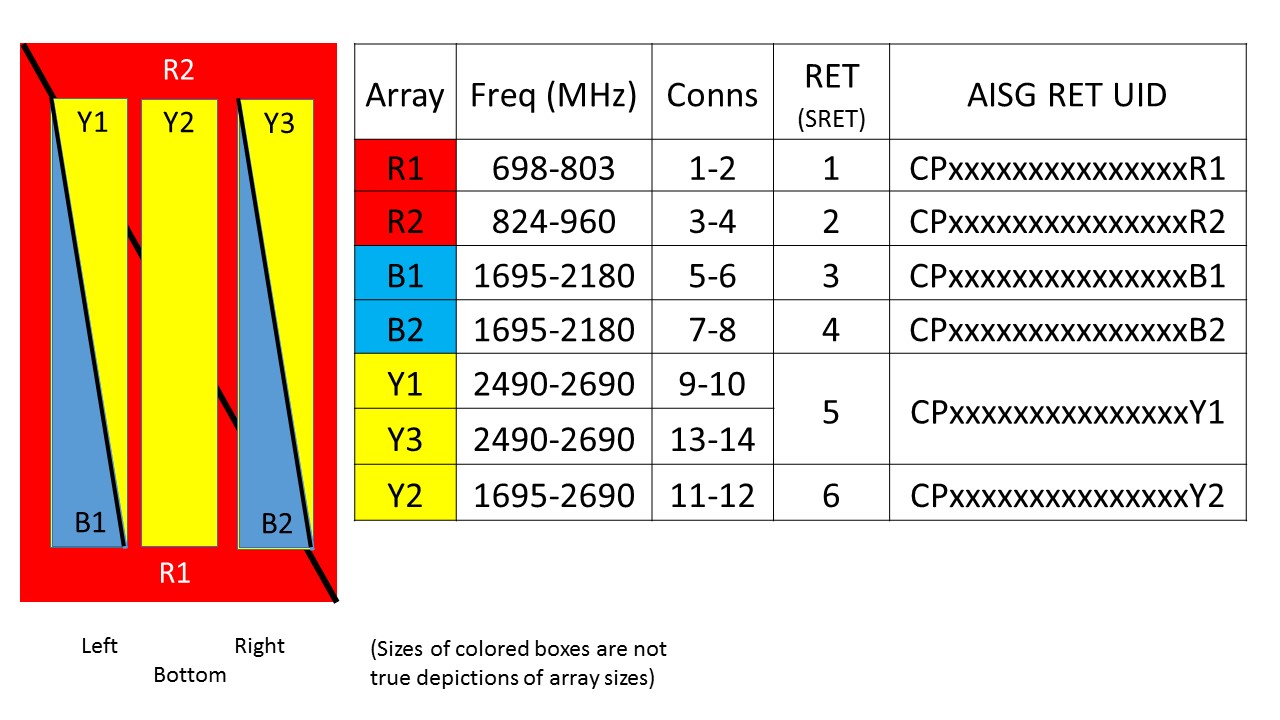

Array layout

Click on image to enlarge.

Electrical specifications

Impedance	50 ohm
Operating Frequency Band	698 – 803 MHz \| 824 – 960 MHz \| 1695 – 2180 MHz \| 1695 – 2690 MHz \| 2490 – 2690 MHz
Polarization	±45°
Total Input Power, maximum	900 W @ 50 °C

Electrical specifications

	R1	R2	B1-B2	B1-B2	Y1/Y3	Y2	Y2	Y2
Frequency Band, MHz	698–803	824–960	1695–1880	1920–2180	2490–2690	1695–1880	1920–2180	2300–2690
Gain, dBi	15.0	15.5	17.4	18.4	17.9	17.5	18.8	18.8
Beamwidth, Horizontal, degrees	66	64	70	66	63	71	61	62
Beamwidth, Vertical, degrees	11.7	10.2	5.4	4.9	4.2	5.6	5	4.2
Beam Tilt, degrees	2–14	2–14	2–12	2–12	2–12	2–12	2–12	2–12
USLS (First Lobe), dB	17	19	16	16	20	19	18	17
Front-to-Back Ratio at 180°, dB	31	33	32	34	30	32	36	33
CPR at Boresight, dB	18	16	17	19	15	21	21	16
Isolation, Cross Polarization, dB	25	25	25	25	25	25	25	25
Isolation, Inter-band, dB	25	25	25	25	25	25	25	25
VSWR \| Return loss, dB	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0
PIM, 3rd Order, 2 x 20 W, dBc	-150	-150	-150	-150	-150	-150	-150	-150
Input Power per Port at 50°C, maximum, watts	250	250	200	200	150	250	250	200

Mechanical specifications

Wind Loading @ Velocity, frontal	398.0 N @ 150 km/h (89.5 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral	290.0 N @ 150 km/h (65.2 lbf @ 150 km/h)
Wind Loading @ Velocity, maximum	681.0 N @ 150 km/h (153.1 lbf @ 150 km/h)
Wind Loading @ Velocity, rear	409.0 N @ 150 km/h (91.9 lbf @ 150 km/h)
Wind Speed, maximum	241 km/h (150 mph)

Packaging and weights

Width, packed	505 mm \| 19.882 in
Depth, packed	386 mm \| 15.197 in
Length, packed	2123 mm \| 83.583 in
Weight, gross	52.1 kg \| 114.861 lb

Regulatory compliance/certifications

Agency	Classification
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system

General specifications

Antenna Type	Sector
Band	Multiband
Grounding Type	RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note	Outdoor usage \| Wind loading figures are validated by wind tunnel measurements described in white paper WP-112534-EN
Radome Material	Fiberglass, UV resistant
Reflector Material	Aluminum
RF Connector Interface	4.3-10 Female
RF Connector Location	Bottom
RF Connector Quantity, high band	10
RF Connector Quantity, mid band	0
RF Connector Quantity, low band	4
RF Connector Quantity, total	14

Remote electrical tilt (ret) information

RET Hardware	CommRET v2
RET Interface	8-pin DIN Female \| 8-pin DIN Male
RET Interface, quantity	2 female \| 2 male
Input Voltage	10–30 Vdc
Internal RET	High band (4) \| Low band (2)
Power Consumption, idle state, maximum	1 W
Power Consumption, normal conditions, maximum	8 W
Protocol	3GPP/AISG 2.0 (Single RET)

Dimensions

Width	395 mm \| 15.551 in
Depth	228 mm \| 8.976 in
Length	1980 mm \| 77.953 in
Net Weight, without mounting kit	35.6 kg \| 78.484 lb

Electrical specifications

Impedance	50 ohm
Operating Frequency Band	698 – 803 MHz \| 824 – 960 MHz \| 1695 – 2180 MHz \| 1695 – 2690 MHz \| 2490 – 2690 MHz
Polarization	±45°
Total Input Power, maximum	900 W @ 50 °C

Electrical specifications

	R1	R2	B1-B2	B1-B2	Y1/Y3	Y2	Y2	Y2
Frequency Band, MHz	698–803	824–960	1695–1880	1920–2180	2490–2690	1695–1880	1920–2180	2300–2690
Gain, dBi	15.0	15.5	17.4	18.4	17.9	17.5	18.8	18.8
Beamwidth, Horizontal, degrees	66	64	70	66	63	71	61	62
Beamwidth, Vertical, degrees	11.7	10.2	5.4	4.9	4.2	5.6	5	4.2
Beam Tilt, degrees	2–14	2–14	2–12	2–12	2–12	2–12	2–12	2–12
USLS (First Lobe), dB	17	19	16	16	20	19	18	17
Front-to-Back Ratio at 180°, dB	31	33	32	34	30	32	36	33
CPR at Boresight, dB	18	16	17	19	15	21	21	16
Isolation, Cross Polarization, dB	25	25	25	25	25	25	25	25
Isolation, Inter-band, dB	25	25	25	25	25	25	25	25
VSWR \| Return loss, dB	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0
PIM, 3rd Order, 2 x 20 W, dBc	-150	-150	-150	-150	-150	-150	-150	-150
Input Power per Port at 50°C, maximum, watts	250	250	200	200	150	250	250	200

Mechanical specifications

Wind Loading @ Velocity, frontal	398.0 N @ 150 km/h (89.5 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral	290.0 N @ 150 km/h (65.2 lbf @ 150 km/h)
Wind Loading @ Velocity, maximum	681.0 N @ 150 km/h (153.1 lbf @ 150 km/h)
Wind Loading @ Velocity, rear	409.0 N @ 150 km/h (91.9 lbf @ 150 km/h)
Wind Speed, maximum	241 km/h (150 mph)
