FVV-65B-3XKIT

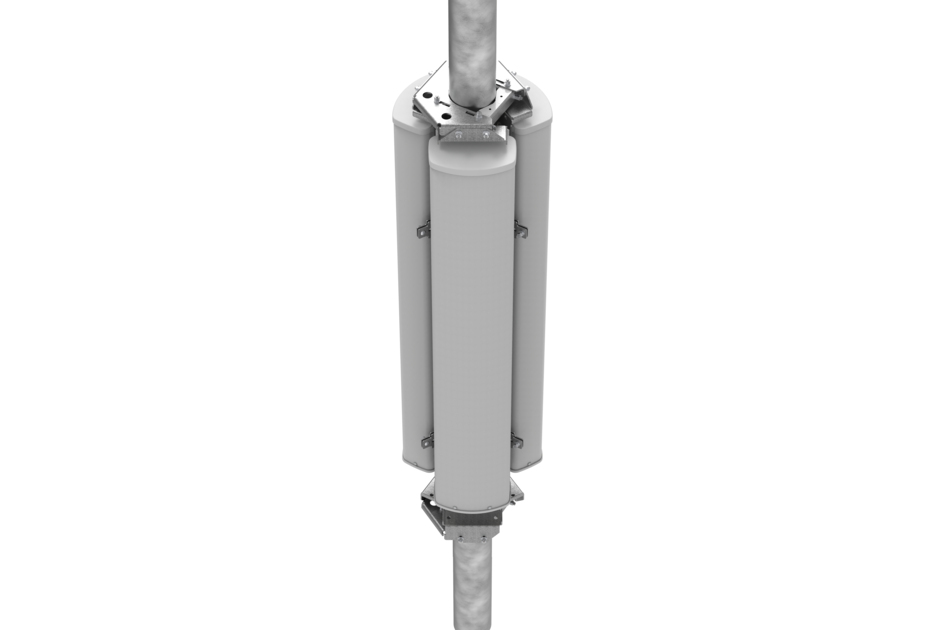

Tri-sector solution that includes 3 FVV-65B-R3-V1 antennas and mounting kit to install them on a pipe
Features and benefits
- Suitable for attachment to 3.5-6.5 in or 89-165 mm outer diameter pipe
- Compatible with canister concealment shrouds with inner diameter > 23.5 in (597mm)
- Minimum shroud diameter is the same for all applicable pipe diameters
Specifications
General specifications
| Band | Multiband |
| Performance Note | Outdoor usage |
| RF Connector Quantity, high band | 12 |
| RF Connector Quantity, mid band | 0 |
| RF Connector Quantity, low band | 6 |
| RF Connector Quantity, total | 18 |
Dimensions
| Net Weight, with mounting kit | 114 kg | 251.327 lb |
Electrical specifications
| Operating Frequency Band | 617 – 894 MHz | 1695 – 2690 MHz |
Packaging and weights
| Width, packed | 596 mm | 23.465 in |
| Depth, packed | 1022 mm | 40.236 in |
| Length, packed | 2283 mm | 89.882 in |
| Weight, gross | 149 kg | 328.488 lb |
General specifications
| Band | Multiband |
| Performance Note | Outdoor usage |
| RF Connector Quantity, high band | 12 |
| RF Connector Quantity, mid band | 0 |
| RF Connector Quantity, low band | 6 |
| RF Connector Quantity, total | 18 |
Dimensions
| Net Weight, with mounting kit | 114 kg | 251.327 lb |
Electrical specifications
| Operating Frequency Band | 617 – 894 MHz | 1695 – 2690 MHz |
Packaging and weights
| Width, packed | 596 mm | 23.465 in |
| Depth, packed | 1022 mm | 40.236 in |
| Length, packed | 2283 mm | 89.882 in |
| Weight, gross | 149 kg | 328.488 lb |
