FF-45C-R1
4-port sector antenna, 4x 617–894 MHz, 45° HPBW, 1x RET
Features and benefits
- Narrow beamwidth capacity antenna for higher level of densification and enhanced data throughput
- High gain for maximum coverage
Specifications
General specifications
| Antenna Type | Sector |
| Band | Single band |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | Fiberglass, UV resistant |
| Reflector Material | Aluminum |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 0 |
| RF Connector Quantity, mid band | 0 |
| RF Connector Quantity, low band | 4 |
| RF Connector Quantity, total | 4 |
Remote electrical tilt (ret) information
| RET Hardware | CommRET v2 |
| RET Interface | 8-pin DIN Female | 8-pin DIN Male |
| RET Interface, quantity | 1 female | 1 male |
| Input Voltage | 10–30 Vdc |
| Internal RET | Low band (1) |
| Power Consumption, active state, maximum | 10 W |
| Power Consumption, idle state, maximum | 2 W |
| Protocol | 3GPP/AISG 2.0 (Single RET) |
Dimensions
| Width | 970 mm | 38.189 in |
| Depth | 235 mm | 9.252 in |
| Length | 2438 mm | 95.984 in |
| Net Weight, without mounting kit | 81.8 kg | 180.338 lb |
Array layout
| Click on image to enlarge. |

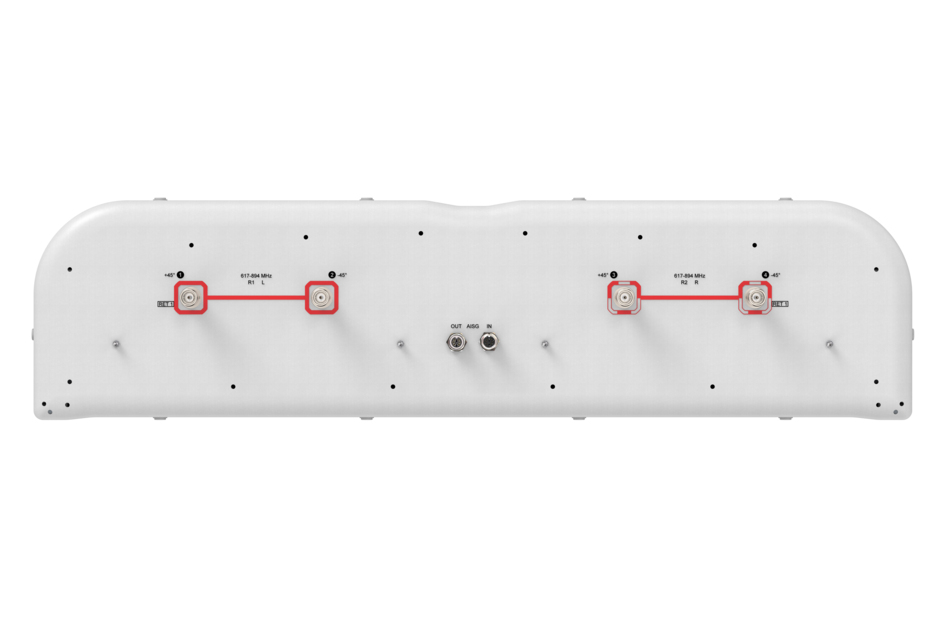

Port configuration
| Click on image to enlarge. |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 617 – 894 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 600 W @ 50 °C |
Electrical specifications
| Frequency Band, MHz | 617–698 | 698–803 | 817–894 |
| Gain, dBi | 17.5 | 18.0 | 18.1 |
| Beamwidth, Horizontal, degrees | 48 | 42 | 39 |
| Beamwidth, Vertical, degrees | 10.2 | 9.2 | 7.9 |
| Beam Tilt, degrees | 0–10 | 0–10 | 0–10 |
| USLS (First Lobe), dB | 18 | 19 | 17 |
| Front-to-Back Ratio at 180°, dB | 42 | 37 | 36 |
| CPR at Boresight, dB | 20 | 19 | 18 |
| Isolation, Cross Polarization, dB | 25 | 25 | 25 |
| Isolation, Inter-band, dB | 25 | 25 | 25 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -150 | -150 | -150 |
| Input Power per Port at 50°C, maximum, watts | 250 | 250 | 250 |
Mechanical specifications
| Wind Loading @ Velocity, frontal | 3,022.0 N @ 150 km/h (679.4 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 922.0 N @ 150 km/h (207.3 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 3,022.0 N @ 150 km/h (679.4 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Packaging and weights
| Width, packed | 1122 mm | 44.173 in |
| Depth, packed | 575 mm | 22.638 in |
| Length, packed | 2689 mm | 105.866 in |
| Weight, gross | 124 kg | 273.373 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Below maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| ROHS | Compliant |
| UK-ROHS | Compliant |
General specifications
| Antenna Type | Sector |
| Band | Single band |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | Fiberglass, UV resistant |
| Reflector Material | Aluminum |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 0 |
| RF Connector Quantity, mid band | 0 |
| RF Connector Quantity, low band | 4 |
| RF Connector Quantity, total | 4 |
Remote electrical tilt (ret) information
| RET Hardware | CommRET v2 |
| RET Interface | 8-pin DIN Female | 8-pin DIN Male |
| RET Interface, quantity | 1 female | 1 male |
| Input Voltage | 10–30 Vdc |
| Internal RET | Low band (1) |
| Power Consumption, active state, maximum | 10 W |
| Power Consumption, idle state, maximum | 2 W |
| Protocol | 3GPP/AISG 2.0 (Single RET) |
Dimensions
| Width | 970 mm | 38.189 in |
| Depth | 235 mm | 9.252 in |
| Length | 2438 mm | 95.984 in |
| Net Weight, without mounting kit | 81.8 kg | 180.338 lb |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 617 – 894 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 600 W @ 50 °C |
Electrical specifications
| Frequency Band, MHz | 617–698 | 698–803 | 817–894 |
| Gain, dBi | 17.5 | 18.0 | 18.1 |
| Beamwidth, Horizontal, degrees | 48 | 42 | 39 |
| Beamwidth, Vertical, degrees | 10.2 | 9.2 | 7.9 |
| Beam Tilt, degrees | 0–10 | 0–10 | 0–10 |
| USLS (First Lobe), dB | 18 | 19 | 17 |
| Front-to-Back Ratio at 180°, dB | 42 | 37 | 36 |
| CPR at Boresight, dB | 20 | 19 | 18 |
| Isolation, Cross Polarization, dB | 25 | 25 | 25 |
| Isolation, Inter-band, dB | 25 | 25 | 25 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -150 | -150 | -150 |
| Input Power per Port at 50°C, maximum, watts | 250 | 250 | 250 |
Mechanical specifications
| Wind Loading @ Velocity, frontal | 3,022.0 N @ 150 km/h (679.4 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 922.0 N @ 150 km/h (207.3 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 3,022.0 N @ 150 km/h (679.4 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Packaging and weights
| Width, packed | 1122 mm | 44.173 in |
| Depth, packed | 575 mm | 22.638 in |
| Length, packed | 2689 mm | 105.866 in |
| Weight, gross | 124 kg | 273.373 lb |
| Click on image to enlarge. |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Below maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| ROHS | Compliant |
| UK-ROHS | Compliant |
