EGV4-65D-R6

12-port multiband antenna, 2x 694–862, 2x 880–960 and 8x 1695–2690 MHz, 65° horizontal beamwidth, 6x Internal RET. Low band arrays are diplexed at the element level.

Finish making your selections or clear them to view relevant specifications.

Find a partner

Features and benefits

All Internal RET actuators are connected in “Cascaded SRET” configuration
Integrated Internal Remote Electrical Tilt (RET), with independent control of electrical tilt on all arrays
Uses the 4.3-10 connector which is 40 percent smaller than the 7-16 DIN connector
Low band array is diplexed for independent tilt
High band antennas are arranged side-by-side for optimum MIMO 4x4/4x2 performance

Specifications

General specifications

Antenna Type	Sector
Band	Multiband
Color	Light Gray (RAL 7035)
Grounding Type	RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note	Outdoor usage \| Wind loading figures are validated by wind tunnel measurements described in white paper WP-112534-EN
Radome Material	Fiberglass, UV resistant
Radiator Material	Copper \| Low loss circuit board
Reflector Material	Aluminum
RF Connector Interface	4.3-10 Female
RF Connector Location	Bottom
RF Connector Quantity, high band	8
RF Connector Quantity, mid band	0
RF Connector Quantity, low band	4
RF Connector Quantity, total	12

Remote electrical tilt (ret) information

RET Hardware	CommRET v2
RET Interface	8-pin DIN Female \| 8-pin DIN Male
RET Interface, quantity	1 female \| 1 male
Input Voltage	10–30 Vdc
Internal RET	High band (4) \| Low band (2)
Power Consumption, idle state, maximum	1 W
Power Consumption, normal conditions, maximum	8 W
Protocol	3GPP/AISG 2.0 (Single RET)

Dimensions

Width	350 mm \| 13.78 in
Depth	208 mm \| 8.189 in
Length	2688 mm \| 105.827 in
Net Weight, without mounting kit	43.5 kg \| 95.901 lb

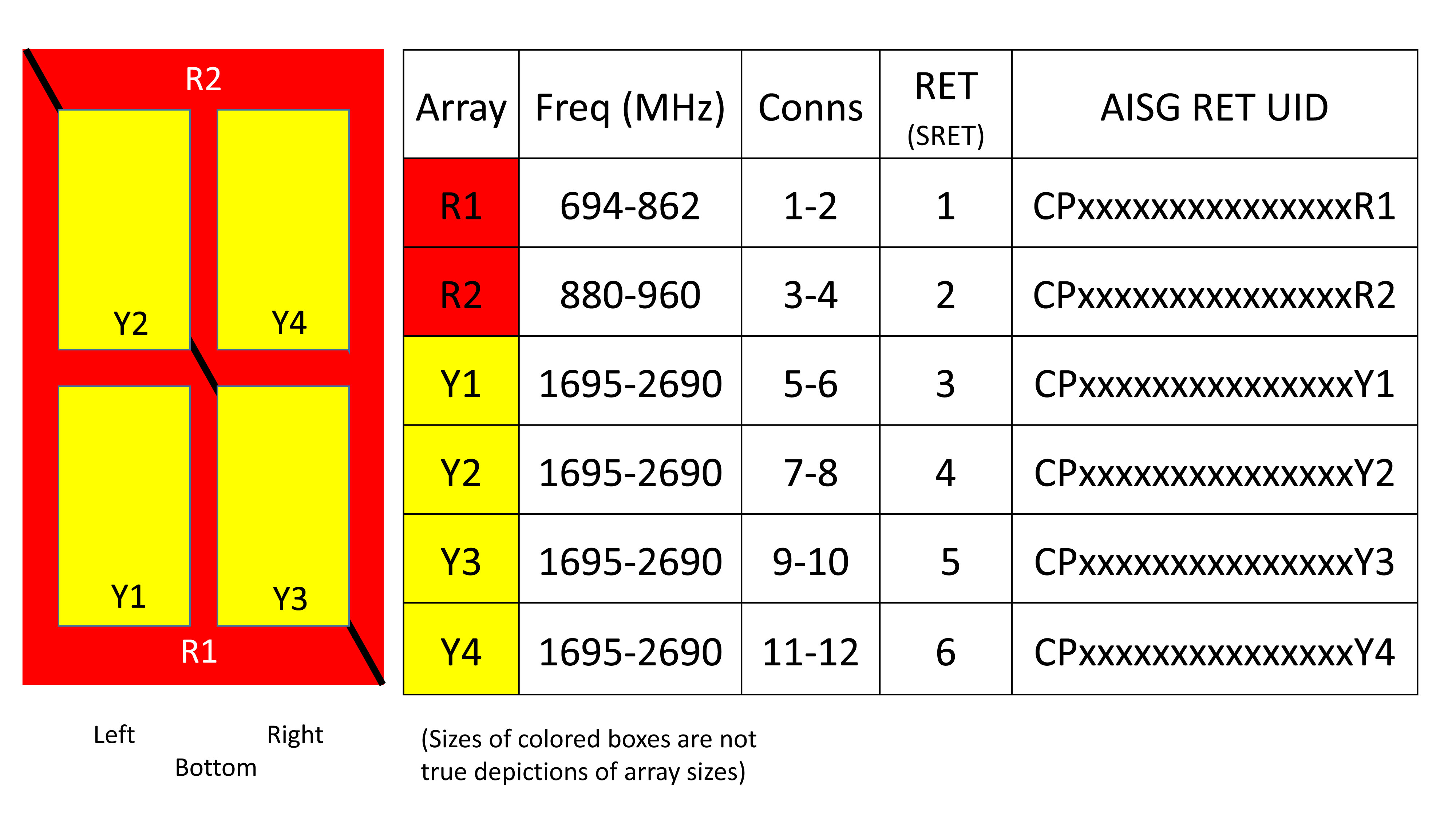

Array layout

Click on image to enlarge.

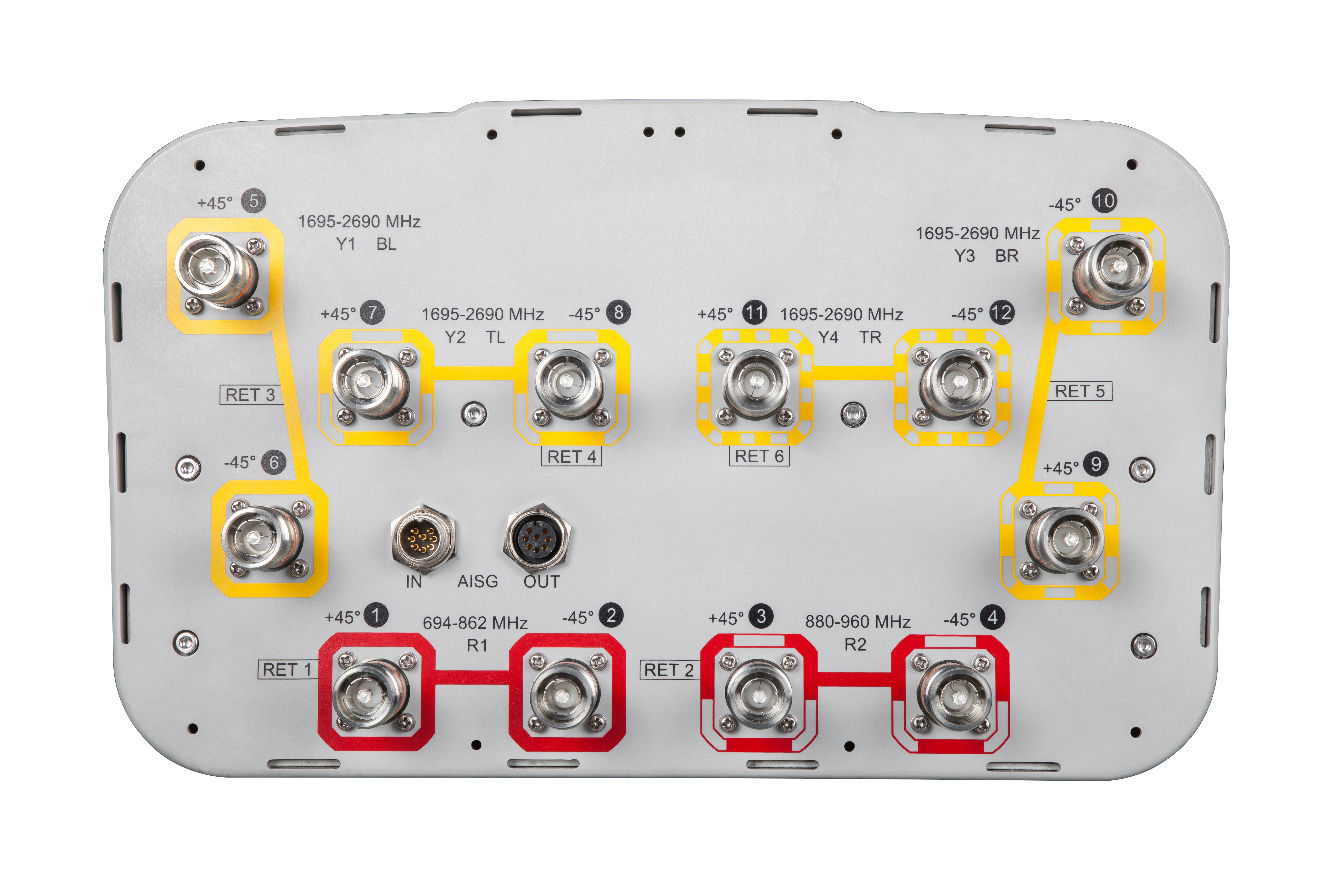

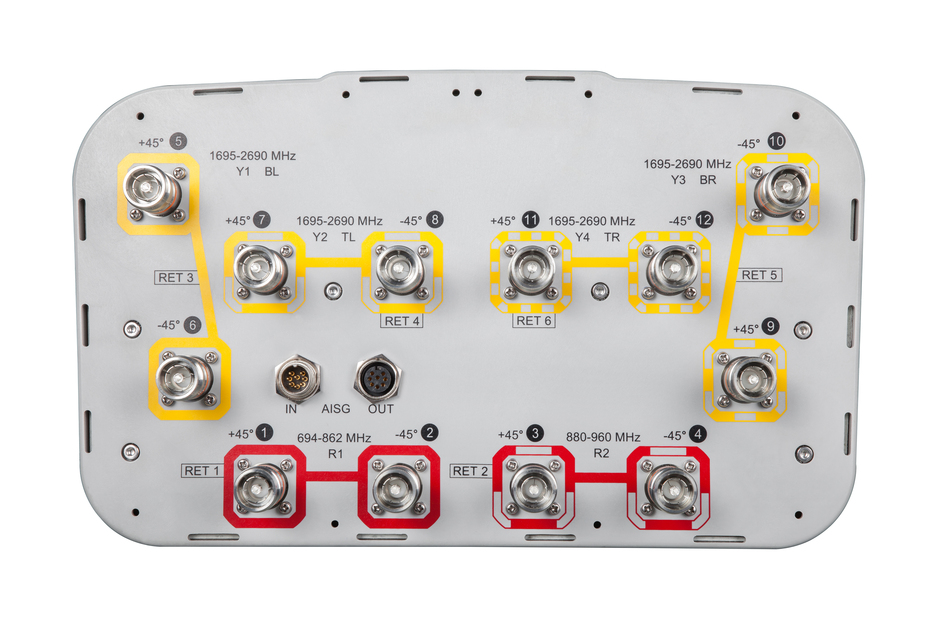

Port configuration

Click on image to enlarge.

Electrical specifications

Impedance	50 ohm
Operating Frequency Band	694 – 862 MHz \| 880 – 960 MHz \| 1695 – 2690 MHz
Polarization	±45°
Total Input Power, maximum	800 W @ 50 °C

Electrical specifications

Frequency Band, MHz	694–862	880–960	1695–1920	1920–2180	2300–2500	2500–2690
Gain, dBi	16.7	17.0	17.0	17.5	18.3	18.3
Beamwidth, Horizontal, degrees	66	63	63	63	61	61
Beamwidth, Vertical, degrees	8	6.9	7.3	6.5	5.7	5.3
Beam Tilt, degrees	2–12	2–12	2–12	2–12	2–12	2–12
USLS (First Lobe), dB	17	15	14	16	15	15
Front-to-Back Ratio at 180°, dB	33	35	32	35	36	35
CPR at Boresight, dB	20	21	20	21	23	22
Isolation, Cross Polarization, dB	28	28	28	28	28	28
Isolation, Inter-band, dB	30	30	30	30	30	30
VSWR \| Return loss, dB	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0
PIM, 3rd Order, 2 x 20 W, dBc	-150	-150	-150	-150	-150	-150
Input Power per Port, maximum, watts	250	250	300	300	300	250

Mechanical specifications

Wind Loading @ Velocity, frontal	477.0 N @ 150 km/h (107.2 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral	409.0 N @ 150 km/h (91.9 lbf @ 150 km/h)
Wind Loading @ Velocity, maximum	1,010.0 N @ 150 km/h (227.1 lbf @ 150 km/h)
Wind Loading @ Velocity, rear	506.0 N @ 150 km/h (113.8 lbf @ 150 km/h)
Wind Speed, maximum	241 km/h (150 mph)

Packaging and weights

Width, packed	460 mm \| 18.11 in
Depth, packed	350 mm \| 13.78 in
Length, packed	2830 mm \| 111.417 in
Weight, gross	60 kg \| 132.277 lb

Regulatory compliance/certifications

Agency	Classification
CE	Compliant with the relevant CE product directives
CHINA-ROHS	Above maximum concentration value
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
ROHS	Compliant/Exempted
UK-ROHS	Compliant/Exempted
