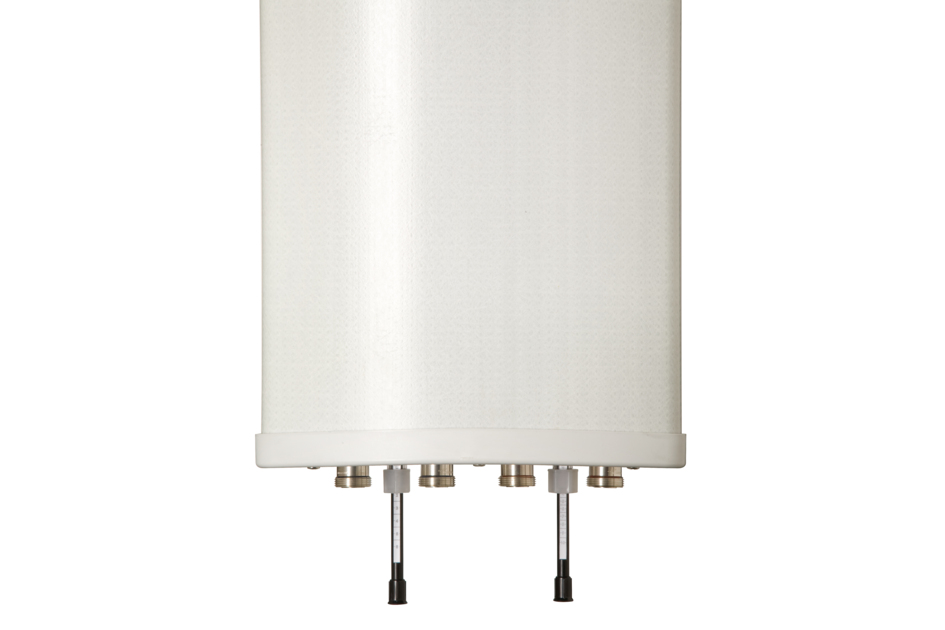

DBXDH-6565B-VTM | DBXDH-6565B-A2M
4-port sector antenna, 2x 790–960 and 2x 1710–2180 MHz, 65° HPBW, RET compatible
Specifications
General specifications
| Antenna Type | Sector |
| Band | Multiband |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage | Wind loading figures are validated by wind tunnel measurements described in white paper WP-112534-EN |
| Radome Material | Fiberglass, UV resistant |
| Radiator Material | Aluminum | Low loss circuit board |
| RF Connector Interface | 7-16 DIN Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 2 |
| RF Connector Quantity, mid band | 0 |
| RF Connector Quantity, low band | 2 |
| RF Connector Quantity, total | 4 |
Remote electrical tilt (ret) information
| Model with Factory Installed AISG 2.0 Actuator | DBXDH-6565B-A2M |
Dimensions
| Width | 301 mm | 11.85 in |
| Depth | 181 mm | 7.126 in |
| Length | 1998 mm | 78.661 in |
| Net Weight, without mounting kit | 22.8 kg | 50.265 lb |

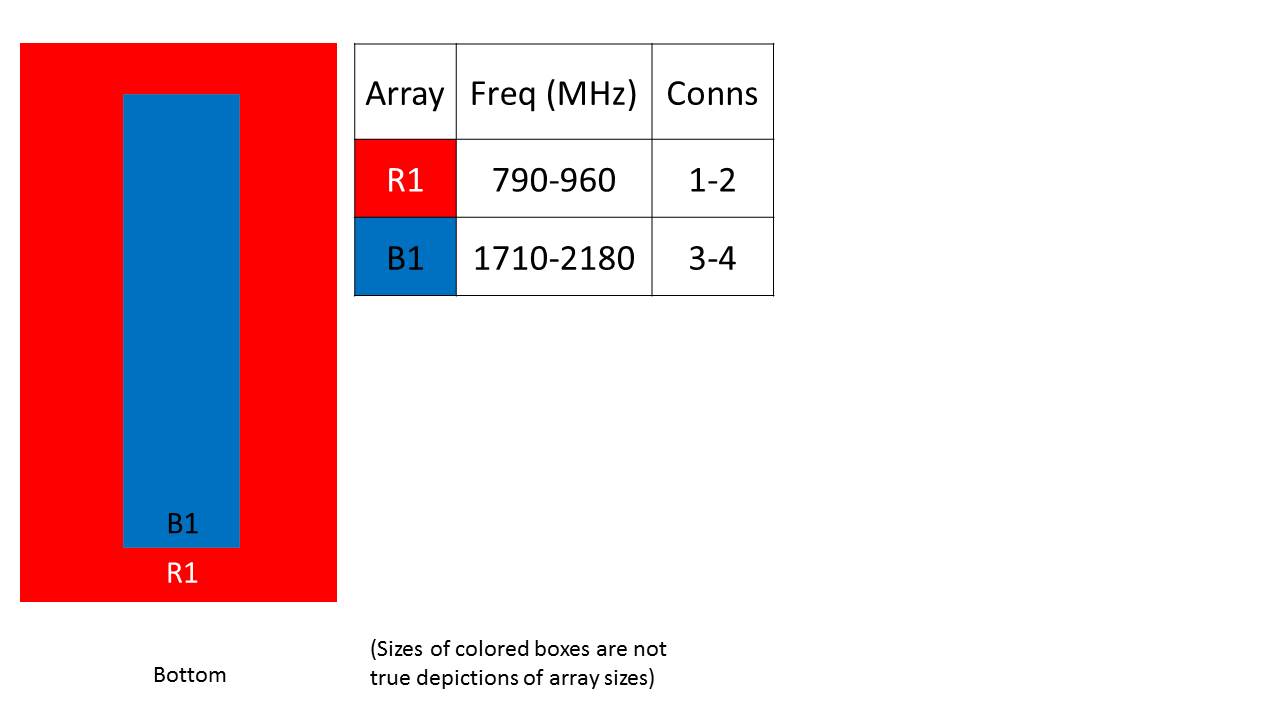

Array layout
| Click on image to enlarge. |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 790 – 960 MHz | 1710 – 2180 MHz |
| Polarization | ±45° |
Electrical specifications
| Frequency Band, MHz | 790–896 | 870–960 | 1710–1880 | 1850–1990 | 1920–2180 |
| Gain, dBi | 15.8 | 16.7 | 18.7 | 18.6 | 18.3 |
| Beamwidth, Horizontal, degrees | 68 | 65 | 63 | 62 | 62 |
| Beamwidth, Vertical, degrees | 10 | 9.3 | 5.2 | 5 | 4.8 |
| Beam Tilt, degrees | 2–12 | 2–12 | 1–8 | 1–8 | 1–8 |
| USLS (First Lobe), dB | 15 | 15 | 15 | 15 | 15 |
| Front-to-Back Ratio at 180°, dB | 28 | 29 | 33 | 32 | 31 |
| CPR at Boresight, dB | 26 | 24 | 18 | 16 | 14 |
| Isolation, Cross Polarization, dB | 30 | 30 | 30 | 30 | 30 |
| Isolation, Inter-band, dB | 37 | 35 | 40 | 40 | 40 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -150 | -150 | -150 | -150 | -150 |
| Input Power per Port, maximum, watts | 500 | 500 | 400 | 400 | 400 |
Mechanical specifications
| Wind Loading @ Velocity, frontal | 681.0 N @ 150 km/h (153.1 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 216.0 N @ 150 km/h (48.6 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 800.0 N @ 150 km/h (179.8 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Packaging and weights
| Width, packed | 411 mm | 16.181 in |
| Depth, packed | 284 mm | 11.181 in |
| Length, packed | 2314 mm | 91.102 in |
| Weight, gross | 35 kg | 77.162 lb |
Regulatory compliance/certifications
| Agency | Classification |
CE
|
Compliant with the relevant CE product directives |
CHINA-ROHS
|
Above maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
General specifications
| Antenna Type | Sector |
| Band | Multiband |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage | Wind loading figures are validated by wind tunnel measurements described in white paper WP-112534-EN |
| Radome Material | Fiberglass, UV resistant |
| Radiator Material | Aluminum | Low loss circuit board |
| RF Connector Interface | 7-16 DIN Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 2 |
| RF Connector Quantity, mid band | 0 |
| RF Connector Quantity, low band | 2 |
| RF Connector Quantity, total | 4 |
Remote electrical tilt (ret) information
| Model with Factory Installed AISG 2.0 Actuator | DBXDH-6565B-A2M |
Dimensions
| Width | 301 mm | 11.85 in |
| Depth | 181 mm | 7.126 in |
| Length | 1998 mm | 78.661 in |
| Net Weight, without mounting kit | 22.8 kg | 50.265 lb |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 790 – 960 MHz | 1710 – 2180 MHz |
| Polarization | ±45° |
Electrical specifications
| Frequency Band, MHz | 790–896 | 870–960 | 1710–1880 | 1850–1990 | 1920–2180 |
| Gain, dBi | 15.8 | 16.7 | 18.7 | 18.6 | 18.3 |
| Beamwidth, Horizontal, degrees | 68 | 65 | 63 | 62 | 62 |
| Beamwidth, Vertical, degrees | 10 | 9.3 | 5.2 | 5 | 4.8 |
| Beam Tilt, degrees | 2–12 | 2–12 | 1–8 | 1–8 | 1–8 |
| USLS (First Lobe), dB | 15 | 15 | 15 | 15 | 15 |
| Front-to-Back Ratio at 180°, dB | 28 | 29 | 33 | 32 | 31 |
| CPR at Boresight, dB | 26 | 24 | 18 | 16 | 14 |
| Isolation, Cross Polarization, dB | 30 | 30 | 30 | 30 | 30 |
| Isolation, Inter-band, dB | 37 | 35 | 40 | 40 | 40 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -150 | -150 | -150 | -150 | -150 |
| Input Power per Port, maximum, watts | 500 | 500 | 400 | 400 | 400 |
Mechanical specifications
| Wind Loading @ Velocity, frontal | 681.0 N @ 150 km/h (153.1 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 216.0 N @ 150 km/h (48.6 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 800.0 N @ 150 km/h (179.8 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Packaging and weights
| Width, packed | 411 mm | 16.181 in |
| Depth, packed | 284 mm | 11.181 in |
| Length, packed | 2314 mm | 91.102 in |
| Weight, gross | 35 kg | 77.162 lb |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
|
CE
|
Compliant with the relevant CE product directives |
|
CHINA-ROHS
|
Above maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
