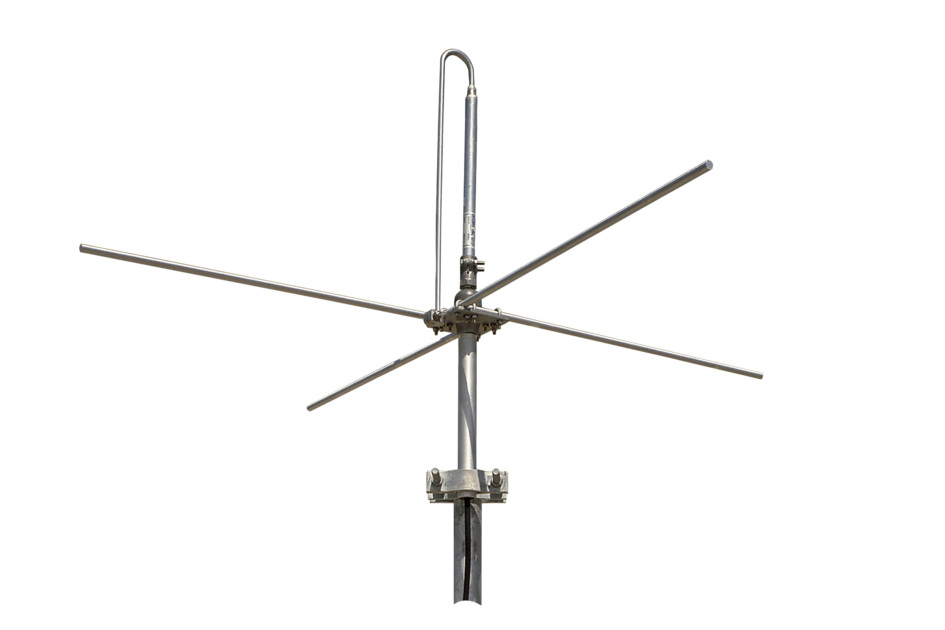

DB201-P

1-port omni ground plane antenna, 450–470 MHz, 360° HPBW, fixed electrical tilt. Bandwidth: 2% of frequency.

Finish making your selections or clear them to view relevant specifications.

Find a partner

Features and benefits

Specifications

General specifications

Antenna Type	Omni
Band	Single band
Color	Silver
Grounding Type	RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note	Outdoor usage
Radiator Material	Aluminum
RF Connector Interface	N Male
RF Connector Location	Bottom
RF Connector Quantity, high band	0
RF Connector Quantity, mid band	0
RF Connector Quantity, low band	1
RF Connector Quantity, total	1

Width	226.1 mm \| 8.902 in
Depth	218.4 mm \| 8.598 in
Length	482.6 mm \| 19 in
Net Weight, without mounting kit	2.7 kg \| 5.952 lb

Frequency Band, MHz	450–470
Gain, dBi	2.1
Beamwidth, Horizontal, degrees	360
Beamwidth, Vertical, degrees	78
Beam Tilt, degrees	0
VSWR \| Return loss, dB	1.5 \| 14.0
Input Power per Port, maximum, watts	500

Wind Loading @ Velocity, maximum	53.4 N @ 100 mph (12.0 lbf @ 100 mph)
Wind Speed, maximum	201 km/h (125 mph)

Agency	Classification
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
