3FF6VV-2010B-R2B
36 port multibeam ultra-high capacity antenna, 3 beams for 617-894 MHz, 6 beams for 1695-2690 MHz, 4 ports for each beam,1x RET per band
Features and benefits
- Ultra-high capacity antenna provides increased throughput for special events or very high traffic locations
- Provides higher capacity than single radio massive MIMO solution
- Multi-beam antenna with 3x LB beams, and 6x MB beam
- All beams support 4T4R service or 2T2R service for 2 licensed bands
- One RET and one SBT on each band for remote optimization and RET control
Specifications
General specifications
| Antenna Type | Multibeam |
| Band | Multiband |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | Fiberglass, UV resistant |
| Radiator Material | Low loss circuit board |
| Reflector Material | Aluminum |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, mid band | 24 |
| RF Connector Quantity, low band | 12 |
| RF Connector Quantity, total | 36 |
Remote electrical tilt (ret) information
| RET Hardware | CommRET v2 |
| RET Interface | 8-pin DIN Female | 8-pin DIN Male |
| RET Interface, quantity | 2 female | 2 male |
| Input Voltage | 10–30 Vdc |
| Internal Bias Tee | Port 1 | Port 13 |
| Internal RET | Low band (1) | Mid band (1) |
| Power Consumption, active state, maximum | 10 W |
| Power Consumption, idle state, maximum | 2 W |
Dimensions
| Width | 1300 mm | 51.181 in |
| Depth | 235 mm | 9.252 in |
| Length | 1800 mm | 70.866 in |
| Net Weight, antenna only | 120 kg | 264.554 lb |

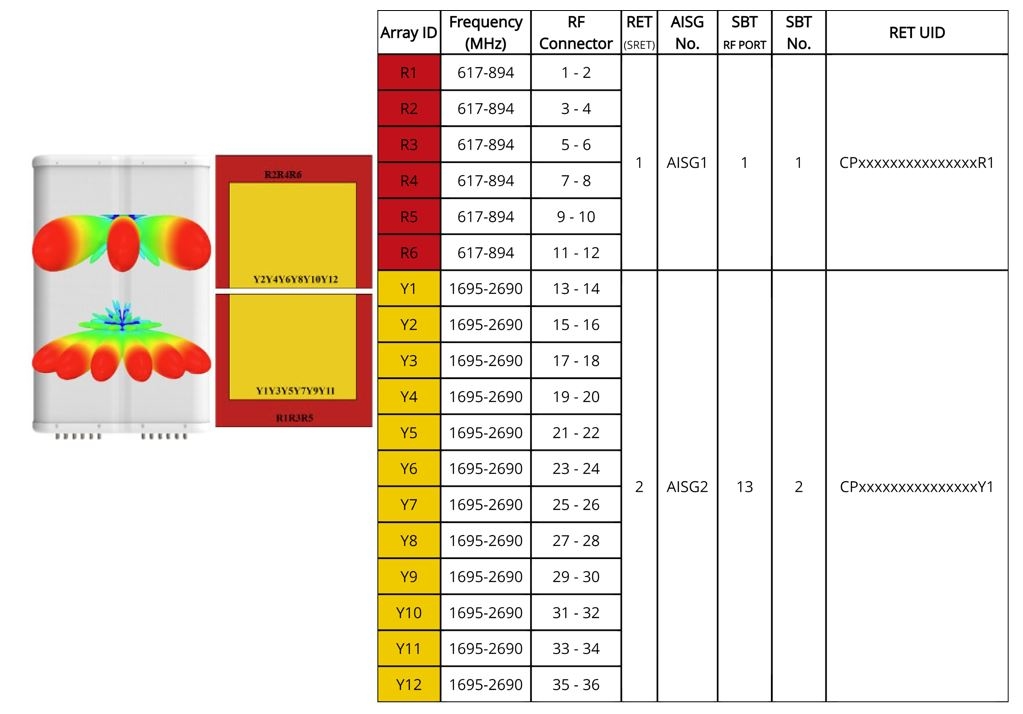

Array layout
| Click on image to enlarge. |

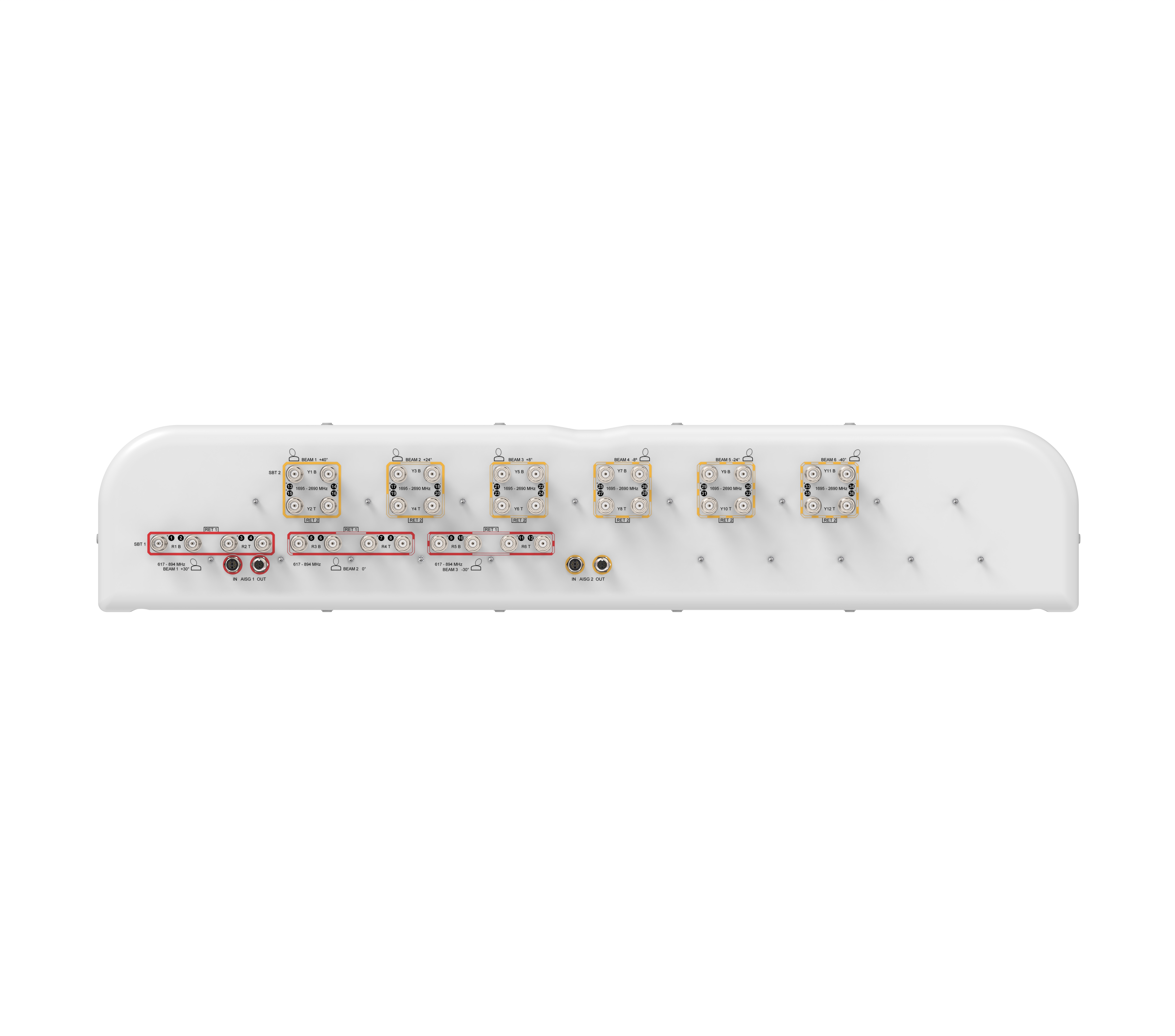

Port configuration
| Click on image to enlarge. |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 617 – 894 MHz | 1695 – 2690 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 2,880 W |
Electrical specifications
| R1-R4 | R1-R4 | Y1,Y2 | Y1,Y2 | Y1,Y2 | |
| Frequency Band, MHz | 617–698 | 698–894 | 1695–1990 | 1920–2180 | 2300–2690 |
| RF Port | 1-12 | 1-12 | 13-36 | 13-36 | 13-36 |
| Beam Centers, Horizontal, degrees | ±0 ±30 | ±0 ±30 | ±24 ±40 ±8 | ±24 ±40 ±8 | ±24 ±40 ±8 |
| Beamwidth, Horizontal, degrees | 26 | 22 | 11 | 11 | 9 |
| Beamwidth, Vertical, degrees | 30.4 | 26.7 | 13.4 | 12.3 | 10.1 |
| Beam Tilt, degrees | 6–14 | 6–14 | 4–10 | 4–10 | 4–10 |
| USLS (First Lobe), dB | 17 | 16 | 9 | 9 | 9 |
| Front-to-Back Ratio at 180°, dB | 27 | 33 | 31 | 29 | 27 |
| Isolation, Cross Polarization, dB | 25 | 25 | 25 | 25 | 25 |
| Isolation, Inter-band, dB | 25 | 25 | 25 | 25 | 25 |
| Isolation, Beam to Beam, dB | 15 | 16 | 19 | 19 | 18 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -153 | -153 | -153 | -153 | -153 |
| Input Power per Port, maximum, watts | 120 | 120 | 120 | 120 | 120 |
Mechanical specifications
| Wind Loading @ Velocity, frontal | 2,988.0 N @ 150 km/h (671.7 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 659.0 N @ 150 km/h (148.1 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 2,988.0 N @ 150 km/h (671.7 lbf @ 150 km/h) |
Packaging and weights
| Width, packed | 1500 mm | 59.055 in |
| Depth, packed | 575 mm | 22.638 in |
| Length, packed | 2000 mm | 78.740 in |
| Weight, gross | 200 kg | 440.924 lb |
Regulatory compliance/certifications
| Agency | Classification |
| UK-ROHS | Compliant |
General specifications
| Antenna Type | Multibeam |
| Band | Multiband |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | Fiberglass, UV resistant |
| Radiator Material | Low loss circuit board |
| Reflector Material | Aluminum |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, mid band | 24 |
| RF Connector Quantity, low band | 12 |
| RF Connector Quantity, total | 36 |
Remote electrical tilt (ret) information
| RET Hardware | CommRET v2 |
| RET Interface | 8-pin DIN Female | 8-pin DIN Male |
| RET Interface, quantity | 2 female | 2 male |
| Input Voltage | 10–30 Vdc |
| Internal Bias Tee | Port 1 | Port 13 |
| Internal RET | Low band (1) | Mid band (1) |
| Power Consumption, active state, maximum | 10 W |
| Power Consumption, idle state, maximum | 2 W |
Dimensions
| Width | 1300 mm | 51.181 in |
| Depth | 235 mm | 9.252 in |
| Length | 1800 mm | 70.866 in |
| Net Weight, antenna only | 120 kg | 264.554 lb |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 617 – 894 MHz | 1695 – 2690 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 2,880 W |
Electrical specifications
| R1-R4 | R1-R4 | Y1,Y2 | Y1,Y2 | Y1,Y2 | |
| Frequency Band, MHz | 617–698 | 698–894 | 1695–1990 | 1920–2180 | 2300–2690 |
| RF Port | 1-12 | 1-12 | 13-36 | 13-36 | 13-36 |
| Beam Centers, Horizontal, degrees | ±0; ±30 | ±0; ±30 | ±24; ±40; ±8 | ±24; ±40; ±8 | ±24; ±40; ±8 |
| Beamwidth, Horizontal, degrees | 26 | 22 | 11 | 11 | 9 |
| Beamwidth, Vertical, degrees | 30.4 | 26.7 | 13.4 | 12.3 | 10.1 |
| Beam Tilt, degrees | 6–14 | 6–14 | 4–10 | 4–10 | 4–10 |
| USLS (First Lobe), dB | 17 | 16 | 9 | 9 | 9 |
| Front-to-Back Ratio at 180°, dB | 27 | 33 | 31 | 29 | 27 |
| Isolation, Cross Polarization, dB | 25 | 25 | 25 | 25 | 25 |
| Isolation, Inter-band, dB | 25 | 25 | 25 | 25 | 25 |
| Isolation, Beam to Beam, dB | 15 | 16 | 19 | 19 | 18 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -153 | -153 | -153 | -153 | -153 |
| Input Power per Port, maximum, watts | 120 | 120 | 120 | 120 | 120 |
Mechanical specifications
| Wind Loading @ Velocity, frontal | 2,988.0 N @ 150 km/h (671.7 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 659.0 N @ 150 km/h (148.1 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 2,988.0 N @ 150 km/h (671.7 lbf @ 150 km/h) |
Packaging and weights
| Width, packed | 1500 mm | 59.055 in |
| Depth, packed | 575 mm | 22.638 in |
| Length, packed | 2000 mm | 78.740 in |
| Weight, gross | 200 kg | 440.924 lb |
| Click on image to enlarge. |

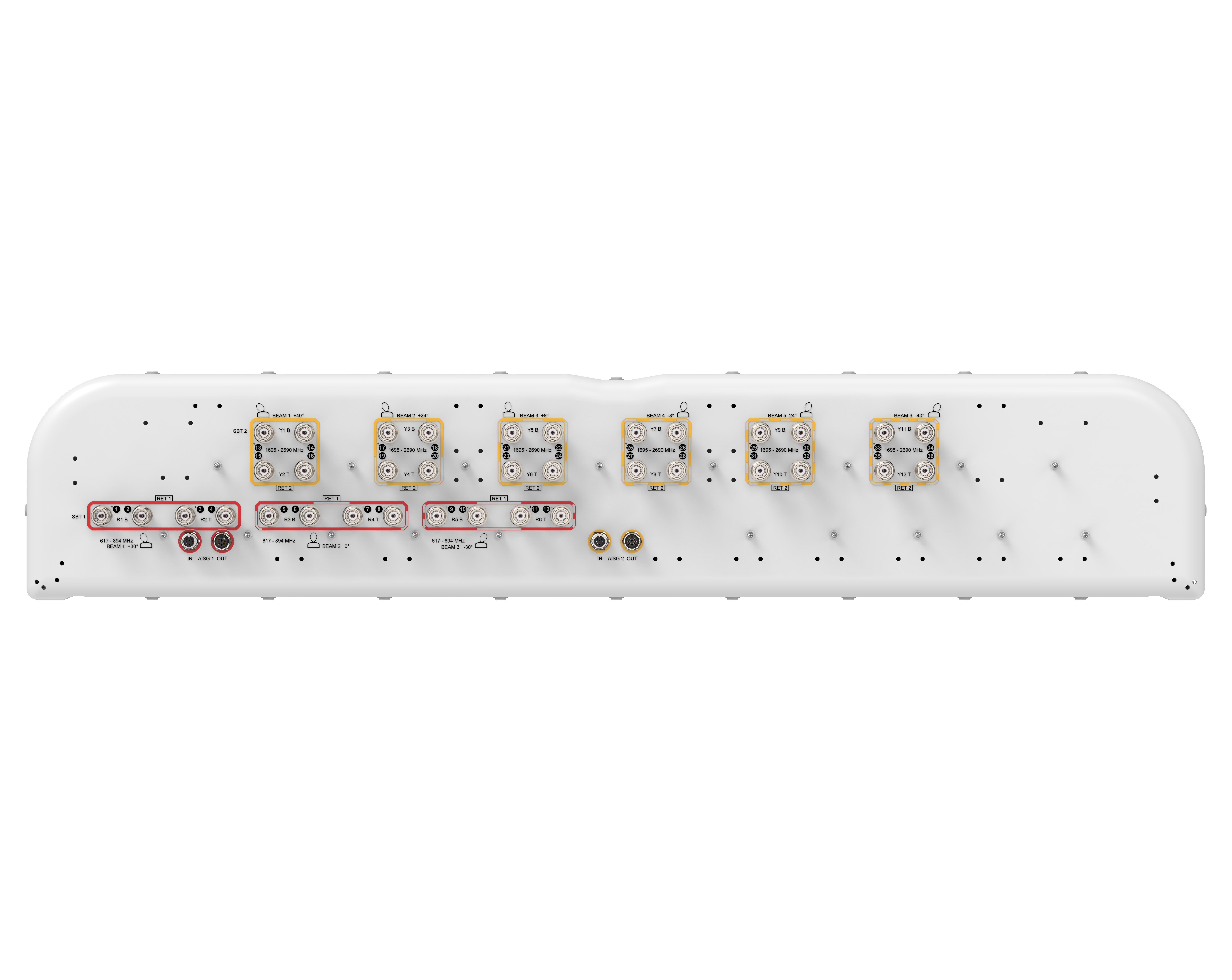

| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
| UK-ROHS | Compliant |
