2X9NPA2010F

18-port multibeam antenna, 18x 1710–2170 MHz, 2x9 Beam Panel Antenna for Event Coverage.

Finish making your selections or clear them to view relevant specifications.

Features and benefits

18-port multibeam antenna, 18x 1710–2170 MHz, 2x9 Beam Panel Antenna for Event Coverage. Two rows of beams spaced 8° in elevation. One set of beams 4° up (+45°) and one set of beams 4° down (-45°) and 5° in azimuth. Upper and lower beam sets displaced in azimuth by ± 2.5° from boresight.

Specifications

General specifications

Antenna Type	Multibeam
Band	Single band
Color	Light Gray (RAL 7035)
Grounding Type	RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note	Outdoor usage
Radome Material	ASA, UV stabilized
RF Connector Interface	7-16 DIN Female

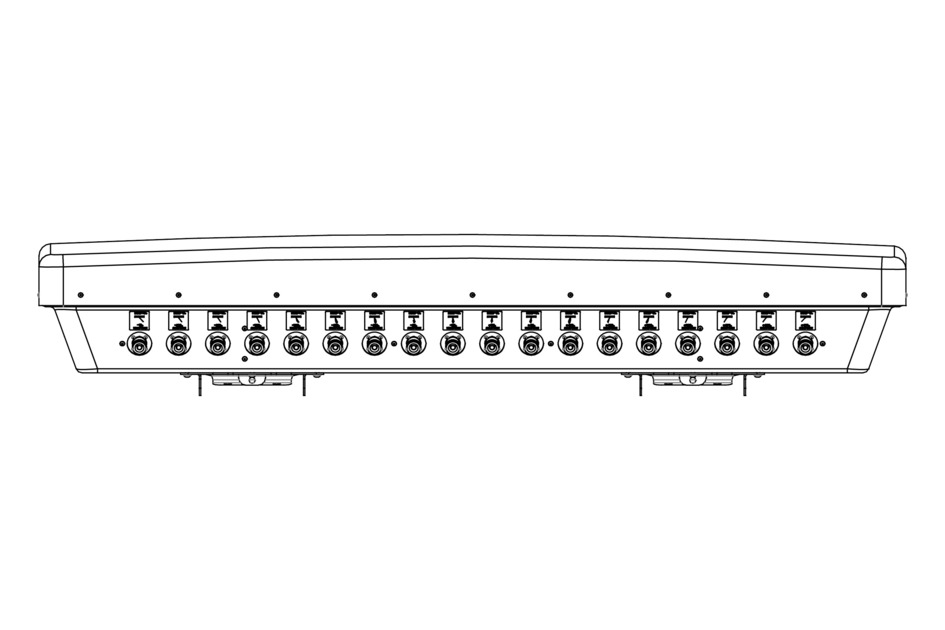

RF Connector Location	Bottom
RF Connector Quantity, high band	18
RF Connector Quantity, mid band	0
RF Connector Quantity, low band	0
RF Connector Quantity, total	18

Dimensions

Width	1486 mm \| 58.504 in
Depth	283 mm \| 11.142 in
Length	1771 mm \| 69.724 in
Net Weight, without mounting kit	140 kg \| 308.647 lb

Electrical specifications

Impedance	50 ohm
Operating Frequency Band	1710 – 2170 MHz
Polarization	Single Slant Polarization

Electrical specifications

Frequency Band, MHz	1710–1920	1920–2170
Gain, dBi	25.0	27.0
Beamwidth, Horizontal, degrees	6	5
Beamwidth, Vertical, degrees	7.2	5.8
USLS (First Lobe), dB	18	18
Front-to-Back Ratio at 180°, dB	30	30
Isolation, Cross Polarization, dB	16	16
VSWR \| Return loss, dB	1.43 \| 15.0	1.43 \| 15.0
PIM, 3rd Order, 2 x 20 W, dBc	-150	-150
Input Power per Port, maximum, watts	300	300

Mechanical specifications

Mechanical Tilt Range	0°–12°
Wind Loading @ Velocity, frontal	3,222.0 N @ 150 km/h (724.3 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral	174.0 N @ 150 km/h (39.1 lbf @ 150 km/h)
Wind Loading @ Velocity, rear	3,123.0 N @ 150 km/h (702.1 lbf @ 150 km/h)
Wind Speed, maximum	160 km/h (99 mph)

Packaging and weights

Width, packed	1758 mm \| 69.213 in
Depth, packed	640 mm \| 25.197 in
Length, packed	1998 mm \| 78.661 in
Weight, gross	188 kg \| 414.469 lb

Regulatory compliance/certifications

Agency	Classification
CE	Compliant with the relevant CE product directives
CHINA-ROHS	Below maximum concentration value
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
ROHS	Compliant
UK-ROHS	Compliant
REACH-SVHC	Compliant as per SVHC revision on www.andrew.com/ProductCompliance
