2UPX210B-T2

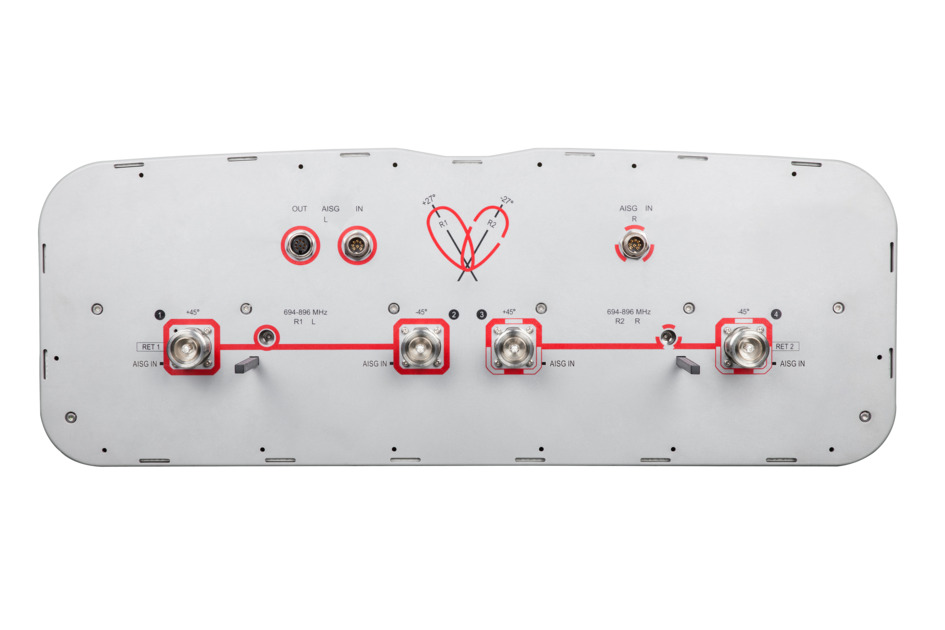

4-port multibeam antenna, 4x 694–896 MHz, 2x 37° HPBW, 2x RET with manual override.

Finish making your selections or clear them to view relevant specifications.

Find a partner

Features and benefits

Integrated Internal Remote Electrical Tilt (RET), with independent control of electrical tilt with manual override on both beams
Each port has an integrated bias tee, and each beam has its own smart switch that automatically selects between bias tee or AISG inputs according to a predetermined priority table
Single panel design supporting two separate beams perfectly optimized at horizontal pointing angles of +27 degrees and –27 degrees from boresight

Specifications

General specifications

Antenna Type	Multibeam
Band	Single band
Grounding Type	RF connector body grounded to reflector and mounting bracket
Performance Note	Outdoor usage \| Wind loading figures are validated by wind tunnel measurements described in white paper WP-112534-EN
Radome Material	Fiberglass, UV resistant
Radiator Material	Copper \| Low loss circuit board
Reflector Material	Aluminum
RF Connector Interface	7-16 DIN Female
RF Connector Location	Bottom
RF Connector Quantity, high band	0
RF Connector Quantity, mid band	0
RF Connector Quantity, low band	4
RF Connector Quantity, total	4

RET Interface	8-pin DIN Female \| 8-pin DIN Male
RET Interface, quantity	1 female \| 2 male
Input Voltage	10–30 Vdc
Internal Bias Tee	Port 1 \| Port 2 \| Port 3 \| Port 4
Internal RET	Low band (2)
Power Consumption, idle state, maximum	2 W
Power Consumption, normal conditions, maximum	13 W
Protocol	3GPP/AISG 2.0 (Single RET)

Width	640 mm \| 25.197 in
Depth	235 mm \| 9.252 in
Length	2533 mm \| 99.724 in
Net Weight, without mounting kit	47 kg \| 103.617 lb

Frequency Band, MHz	694–806	806–896
Gain, dBi	17.9	18.7
Beam Centers, Horizontal, degrees	±27	±27
Beamwidth, Horizontal, degrees	39	36
Beamwidth, Vertical, degrees	9.6	8.4
Beam Tilt, degrees	0–10	0–10
USLS (First Lobe), dB	21	21
Front-to-Back Ratio at 180°, dB	34	40
CPR at Boresight, dB	20	19
Isolation, Cross Polarization, dB	25	25
Isolation, Inter-band, dB	18	18
VSWR \| Return loss, dB	1.43 \| 15.0	1.43 \| 15.0
PIM, 3rd Order, 2 x 20 W, dBc	-150	-150
Input Power per Port at 50°C, maximum, watts	200	200

Wind Loading @ Velocity, frontal	1,102.0 N @ 150 km/h (247.7 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral	372.0 N @ 150 km/h (83.6 lbf @ 150 km/h)
Wind Loading @ Velocity, maximum	1,497.0 N @ 150 km/h (336.5 lbf @ 150 km/h)
Wind Loading @ Velocity, rear	1,135.0 N @ 150 km/h (255.2 lbf @ 150 km/h)
Wind Speed, maximum	200 km/h (124 mph)

Agency	Classification
CHINA-ROHS	Above maximum concentration value
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
ROHS	Compliant/Exempted
UK-ROHS	Compliant/Exempted
